Do-it-yourself Cabin Plan 97010
An Affordable Detailed Lake Cabin Plan
by E.L.A. Designs
to order call
1-800-294-9177 or 1-877-DESIGNS


If you have lake front property or access to a mountain lot, this cabin would be an excellent building choice for your leisure time get a way.  With 1,344 square feet and a centralized great room, this plan offers ample room for small gatherings yet doubles as a cozy retreat. The design incorporates a river rock fireplace in the living room with an adjacent dinning area and an open concept kitchen.

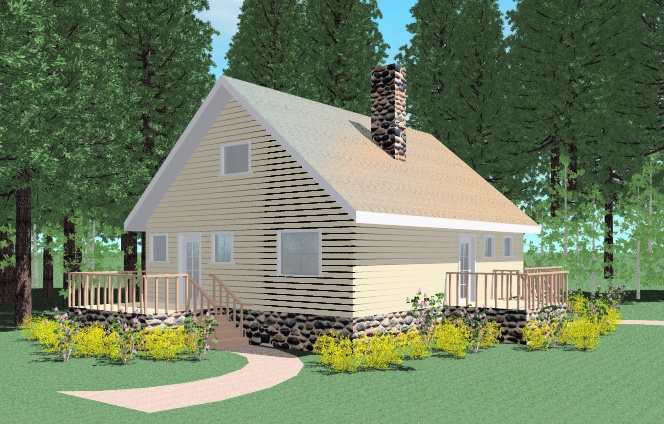

 Plan 97010 Right Elevation
Front & Right Elevations

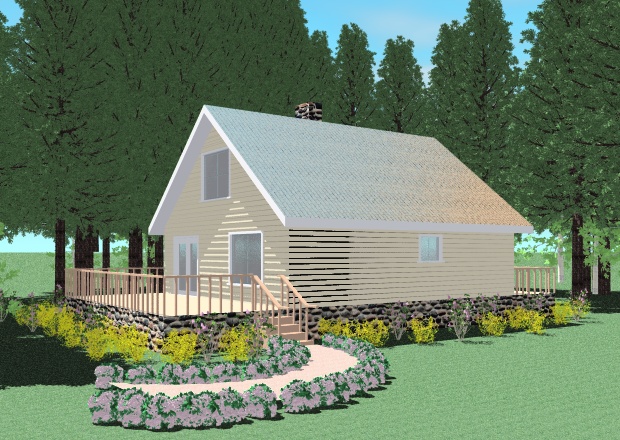

Plan 97010 Back Elevation
Back & Left Elevations

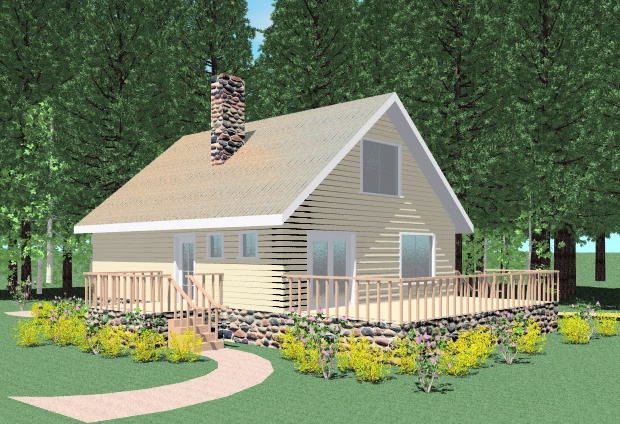

Plan 97010 Front Elevation
Front  & Left Elevations



Item No.

Description

Price

S&H

97010SP

Study Plan of 97010 Floor Plans

Coming Soon!


97010SBP4

4 Sets of Building Plans of 97010

Coming Soon!


97010SBP8

8 Sets of Building Plans of 97010

Coming Soon!


97010SBP

Additional Sets of Building Plan 97010
(when purchasing 97010SBP4 or 97010SBP8)

 Coming Soon! blankgif.gif (815 bytes)


Get Whip Now!

97010VEL

1 Set of Reproducible Plans of 97010
(Licensing agreement with one builder or entity)

Coming Soon!

Where to order from: Phone Order  or Fax Order Form or Mail Order Form
See the actual blue prints on your web browser!  Just down load free software (Whip) from Autodesk , the software manufacturer of AutoCAD. The program is called Whip and it is approximately 1.3MB.  Click on the Whip button and come back to view the Detailed Plans of  97010 Sheet 1 of 5 click here.
The Material List, Scale and Dimensioning are omitted in these whip drawings to ensure copyright. The purchased plans will include all of the omitted items.
